Applications of High-Precision Granite Machine Tool Guides
Commonly referred to in the industry as “granite guides”, the mainstream raw material is Jinan Qinghui long granite (Grade 00/000), generally paired with air bearing hydrostatic, liquid hydrostatic, or linear motor modules, targeting micron/sub-micron and nanometer-level ultra-precision equipment; core advantages: extremely low coefficient of linear expansion, high damping vibration absorption, no internal stress, corrosion resistance, and long-term stable precision.

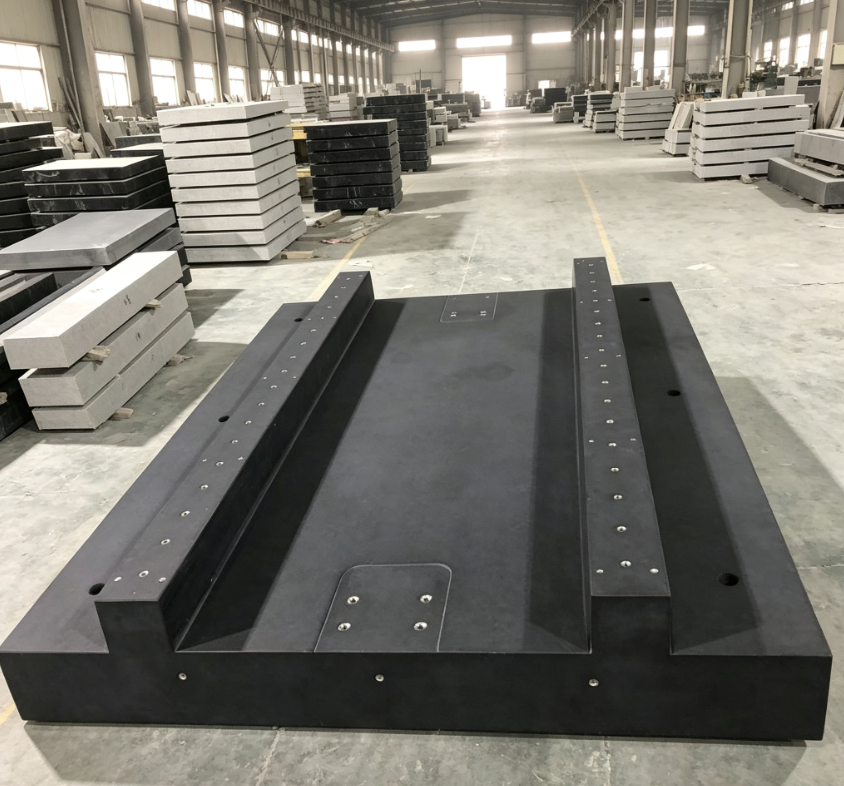

Physical Granite Long Guide
I. Core Material Characteristics (Determining Application Boundaries)
Coefficient of linear expansion: 0.5–1.1×10⁻⁶/℃, only 1/10 of steel, minimal thermal drift;
Damping coefficient: vibration absorption capacity is 8–10 times that of cast iron, suppressing cutting/high-speed motion resonance;
Natural aging over billions of years, almost no residual stress, no creep deformation during long-term use;
Acid and alkali resistant, rust-proof, non-magnetic;
Shortcomings: high brittleness, poor impact resistance, very heavy self-weight, unsuitable for heavy-duty high-power cutting machine tools.
Applicable positioning: ultra-precision, light/medium load, pursuing long-term precision retention; ordinary heavy-duty metal cutting machine tools rarely use it alone.
II. Main Application Fields and Equipment
- Precision Metrology and Inspection Equipment (Most mature, largest volume)
Primarily paired with air bearing guides, serving as motion reference guides:
Coordinate Measuring Machines (CMM): XYZ guide bases for bridge and gantry high-precision models; Grade 000 Jinan Qing guarantees long-term measurement uncertainty;
Optical Measuring Instruments, 2D measuring machines, optical profile projectors;
Length standard devices, laser interferometer calibration tables, step gauge verification platforms;
Gear measuring centers, roundness testers, roughness testers sliding guides.
Value: Reduces measurement errors caused by ambient temperature fluctuations, lowers vibration interference, and ensures years of stable precision without major overhauls. - Ultra-Precision CNC Machine Tools and Fine Carving Equipment
Widely used for non-ferrous metals, optical parts, and 3C micro-parts precision machining, often paired with linear motors:
Optical lens, aspherical ultra-precision grinders, diamond turning machine tool guides;
Glass fine carving machines, sapphire/ceramic processing machine tools (mobile phone covers, optical windows);
PCB drilling machines, LDI laser direct imaging exposure machine motion guides;
Small precision mold carving and milling machines (mirror molds, micro-cavities).
Operating conditions: High-speed light cutting, pursuing extremely high surface quality, where vibration directly produces tool marks, making the natural vibration damping advantage of granite guides obvious. - Semiconductor and Display Panel Equipment (High-end cutting-edge applications)
Almost entirely adopts the granite air bearing guide combination, meeting nanometer-level positioning requirements:
Lithography machine workpiece stages, mask stage linear guide bases;
Wafer inspection equipment, probe stations, die bonders, high-precision mounting platforms;
OLED/LCD evaporation equipment, panel laser repair equipment;
Electron beam inspection, wafer scanning measurement platforms.
Core requirements: Long-term 24h continuous operation, extremely low thermal drift, vibration-free, no rust or dust generation in clean environments. - Laser Processing and Optical Equipment
Femtosecond/picosecond precision laser cutting machines, laser micromachining platform guides;
Optical adjustment platforms, spectrometers, interferometer translation stages;
Infrared optical component processing equipment, astronomical optical lens shaping machine tools. - Aerospace and Medical Precision Manufacturing
Aerospace micro-structural components, inertial device precision machining machine tools;
Medical implants (titanium alloy micro-parts) ultra-precision processing equipment;
Gyroscope and sensor calibration and testing.
III. Guide Pair Matching Forms (Selection for Different Applications)
Granite Aerostatic (Air Bearing Guide) [Top Choice for High-End]
Semiconductor equipment, CMM, ultra-precision optical platforms; frictionless, wear-free, smooth motion, achieving nanometer-level repeatability.
Granite Hydrostatic Guide
Ultra-precision grinding machines; higher load-bearing stiffness, suitable for medium loads and continuous cutting conditions.
Granite Base External Steel Linear Roller Guide
3C precision engraving machines, ordinary imaging instruments; moderate cost, balancing precision and impact resistance, the most common economical solution.
IV. Typical Inapplicable Scenarios (Selection Pitfalls)
Heavy-duty gantry milling machines, large lathes, high-power cutting machine tools (high impact loads, stone is prone to chipping and cracking);
Harsh machining environments with frequent heavy object impacts and strong metal chip flushing;
Equipment requiring lightweight design and frequent lifting/moving (granite has a massive self-weight).
V. Industry Development Trends
As manufacturing upgrades to sub-micron and nanometer precision, granite guides are gradually replacing traditional cast iron bed guides; especially with the accelerating localization of linear motors air bearing motion platforms, the demand for Jinan Qing High-Precision Granite Guides continues to grow in semiconductor, optical inspection, and ultra-precision machining fields; meanwhile, integrated granite bed guide grinding structures have emerged to eliminate assembly interface errors.
